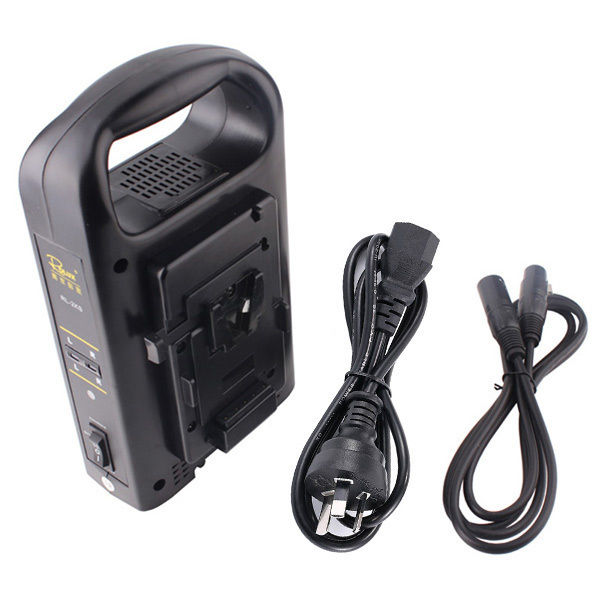

Rolux 2-CH Portable Charger can charge two channels of broadcasting batteries (14.4V/14.8V) simultaneously.
LED power indicator with built-in intelligent control circuit for temperature, current and voltage protection.
Batteries to be charged: V-Mount 14.4V/14.8V
Input: AC 100V-240V, 50/60Hz
Charging output: DC 14-16.8V 3-4A
Adapter DC output: Max DC 60W 15V 4.5A
Operation temp: 0~40 C degree
Size：240 x140 x100mm
Insert one or two V-mount battery onto the Charger mounting plate.
Connect the power cable to the AC main power point.
Switch ON the charger. LED indicator will light up in RED while charging. LED will change to ORANGE when reaching full capacity. LED will become GREEN once the battery is fully charged. Charging time is about 1-2hrs depends on the capacity of battery.
Switch OFF the charger and remove the battery from the Charger.
You may use the charger as direct DC power supply by connecting the supplied XLR DC cable to the DC port and your camera gear.
This charger is designed for indoor use only.
Do not cover the charger and battery while charging. Only charge the battery in well ventilated environment.
Do not open the charger for unauthorised repair.
2 CHANNEL CHARGER
- Interface:Sony V-Mount
- Input: AC 90-240V, 47-63Hz
- Output - Charging:16.8V
- Charge Current (A): 3.0A
- Output - Adapter:15V 4.0A
- Product Dimensions:140(L) X 116(W) X 225(H)mm
- Working Temperature: -10°C～＋35°C
- Product Weight: 990g
- Charger button/OFF button/DC Output button
- With DC Output: MAX 60W 15V 4.0A
1 x Charger with cord
Batteries sold separately
