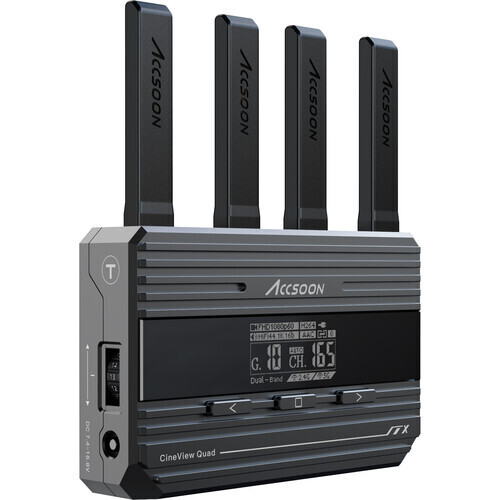

CineView Quad

Accsoon CineView Quad is a SDI&HDMI Dual-Band (2.4GHz & 5GHz) wireless camera video transmitter and receiver system featuring unique foldable antenna design.

It transmits and receives HD video and HQ audio through Accsoon’s uniquely patent Dual-Band transmission technology. With Dual-Band transmission technology, CineView Quad can stream datas over a range of 150m(500ft) with near-zero latency.

Accsoon Wireless Video Transmission CineView Quad Overview

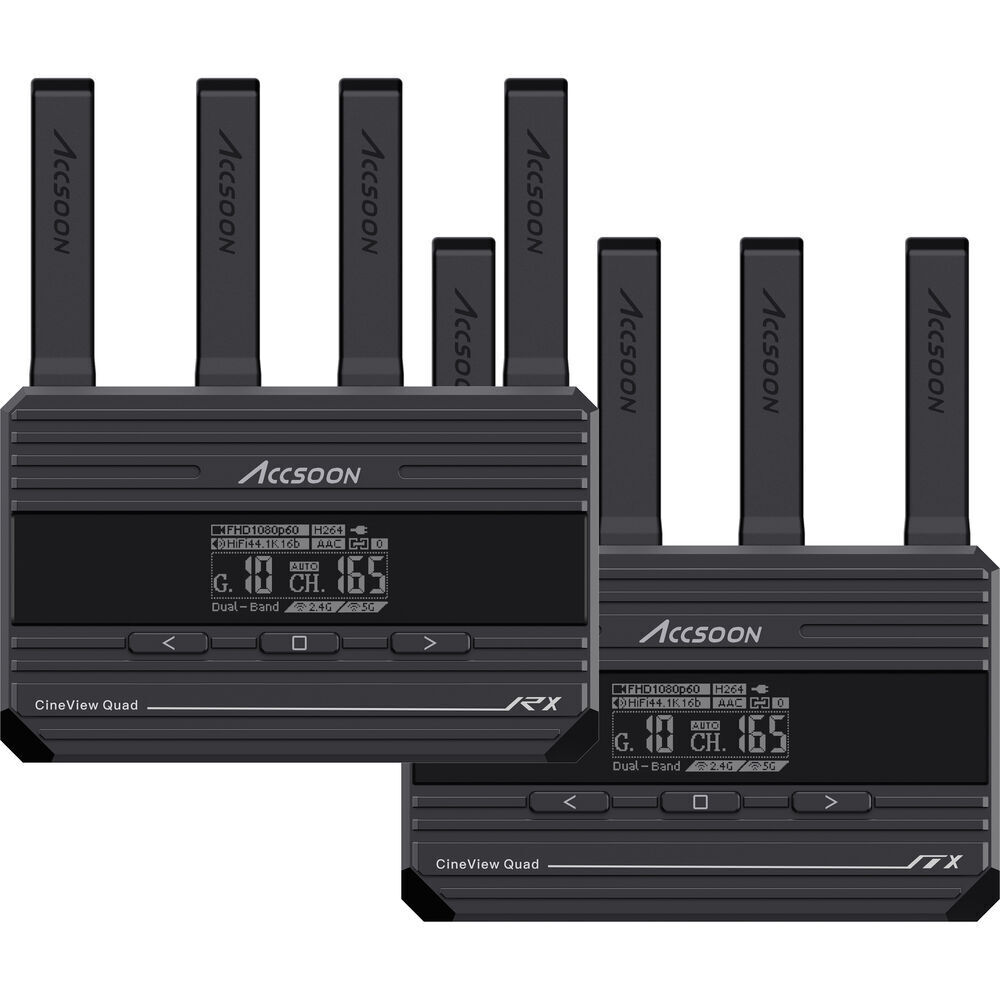

*CineView Quad overview

2.4GHz+5GHz Dual-Band Transmission

To achieve the least interference and best reliability


Accsoon CineView Quad is equipped with Accsoon’s patented Dual-Band transmission technology, allowing it to stream the signal via 2.4GHz and 5GHz WiFi at the same time. Then the receiver can intelligently identify interference and combine the two streams to form the complete audio and video stream greatly improving its stability and anti-interference ability. With Dual-Band transmission, CineView Quad is far more stable than traditional WiFi video transmitters that only stream in 5GHz. Once on set, CineView Quad will provide you with a stable and glitch-free stream, handling even the toughest environment with ease.

Extremely Low Latency Less Than 60ms

Improve your shooting productivity on set

With an average latency of under 60ms – CineView Quad has nearly undetectable lag while maintaining a high-quality image via its strong wireless signal.

Transmission Ranges Up to 500 feet/150m

Reduced interference, hassle-free transmission, and longer distance


By introducing Dual-Band transmission technology which reduces negative interference, CineView Quad can easily reach transmission range of up to 500ft line-of-sight. It can be over a thousand feet away and still give you complete control over the situation.

SDI & HDMI In and Out

Double your video input and output options

With CineView Quad, you can plug up to 4 receivers into anything with an HDMI/SDI input: professional monitors, HD televisions and projectors.

Accsoon Wireless Vide Transmission CineView Quad Features Both HDMI&SDI In and Out Ports

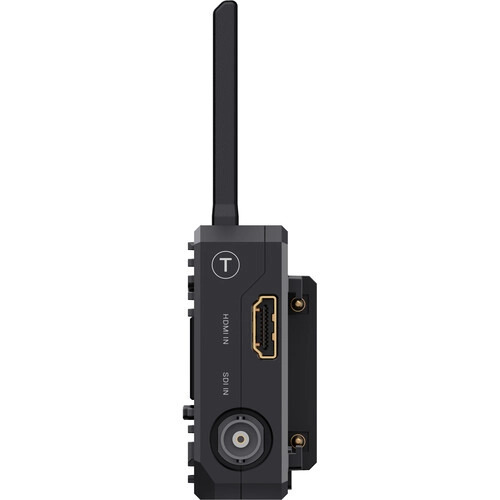

*CineView Quad features SDI&HDMI in and out ports.


Monitoring on Up to 4 Devices, Mix and Match

You already have the monitors. Now have more

CineView Quad not only transmits a WiFi signal directly to dedicated receivers but also allows for a video signal to be sent to iOS or Android devices.

FHD Video and High-Quality Audio Transmission

A real-time feast for your eyes and ears

CineView Quad supports video input of up to 1080p 60fps and audio input of 44.1KHz/48KHz 16bit/24bit. The transmitter alters the bitrate and video quality of the outgoing signal to maximize connection and framerate to make sure you are always able to monitor what is happening.


Accsoon Wireless Video Transmission Features Two ways for Power Supply

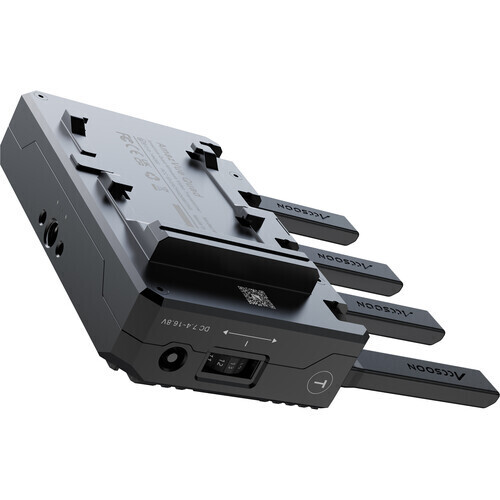

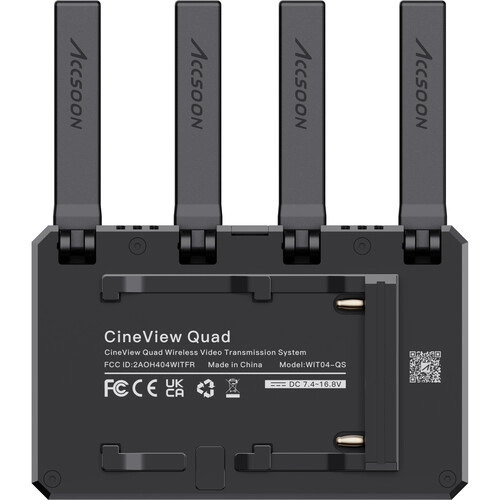

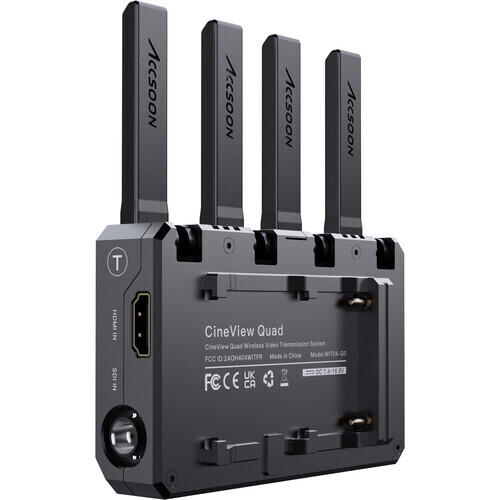

*CineView Quad can be powered by NP-F battery and DC input.

Power Supply With NP-F Series Battery and DC Input

Charge the way you like


You can now supply CineView Quad with power from any NP-F battery. Keep extra batteries on hand for all-day shooting or plug CineView Quad into ground power via the built-in DC input on both the transmitter and receiver. Now, you can send beautiful HD videos to your monitors for as long as the shoot requires.

Pro Features Monitoring App Accsoon Go

Pro control in the palm of your hand

Already boasting features such as focus peaking, zebras, false colors for exposure, and LUT overlay that Accsoon users have come to love. Minimize crew movement and noise while maintaining control from a distance.

Accsoon Professional Monitoring App Functions

Accsoon Professional Monitoring App Applying in iPad

*Accsoon Go App applying in iPad.

Unlock Creative Features Including

Onion skin overlay

Overlay on top of your monitor’s live view


RTMP streaming & remote monitoring from anywhere

Split Screen (only for iPad)

Monitor, record (with LUT), edit or view the script

Quick and Easy Set Up

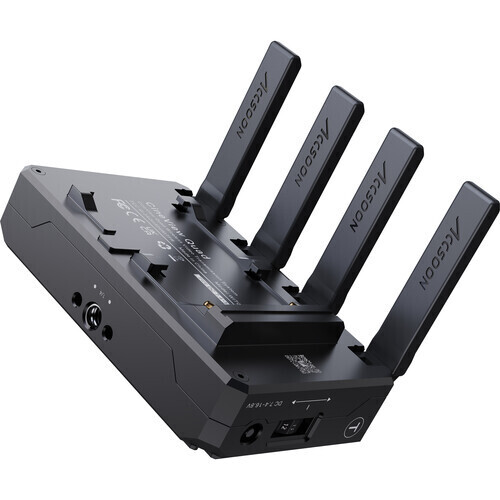

Foldable antennas that are easy to take with and space-saving

CineView Quad is compact, lightweight for immediate use. Just unfold the antennas, mount, and start shooting. With its high-end features and budget price – the Accsoon CineView Quad will grow to be an essential part of any videographer’s kit.

Accsoon Wireless Video Transmission CineView Quad Features Foldable Antennas

*CineView Quad features foldable antennas.

*CineView Quad features fanless design.

Noise-Free Fanless Design

Be quiet and stay quiet


Replace your noisy wireless transmission system with a virtually silent alternative. CineView Quad’s fanless design is a perfect fit for indoor noise-free or narrow-sized shooting applications.

Accsoon Wireless Video Transmission CineView Quad Features Fanless Design

Easy TX/RX Group Pairing

It has never been easier

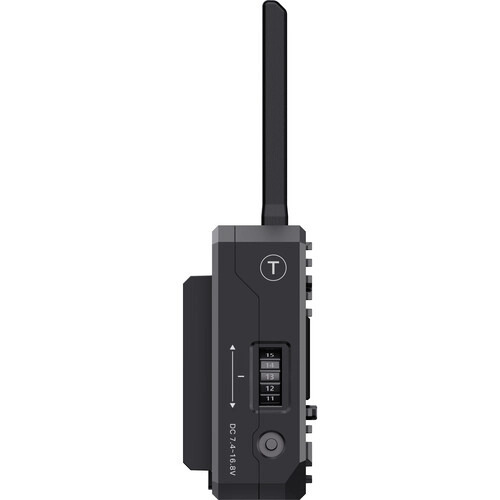

CineView Quad has a group setting knob on each transmitter and receiver. Simply turn the knobs to the same number and voila! Pairing is done and you’re ready to shoot.

Accsoon Wireless Video Transmission CineView Quad Features Easy Group Pairing

*CineView Quad features easy group pairing.

*CineView Quad is made up of Aerospace Grade Aluminum Alloy.

Aerospace Grade Aluminum Alloy

High strength and excellent ductility

CineView Quad is just 31mm thin, 225g and rounded aerospace-grade aluminum alloy frame which is light, firm & corrosion resistant.

CineView Quad Details



Video Input


SDI Input Format

1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B

HDMI Input Format

1080p 23.98/24/25/29.97/30/50/59.94/60fps

DC Port

5.5mmx2.1mm center positive

DC Voltage



44.1KHz/48KHz 16bit/24bit PCM


<0.06s (Camera latency not included)

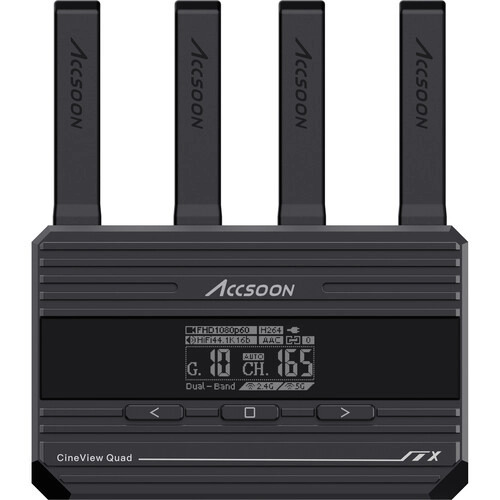

OLED Display


Transmission Power


Transmission Range

500ft (No obstacles, no interference)

Power Consumption

4.5Watt (Typical)

Operating Environment Temperature



105mmx66mmx31mm (Antennas not included)


225g (Antennas included)



Video Output


SDI Output Format

1080p 24/25/30/50/60fps Level A

HDMI Output Format

1080p 24/25/30/50/60fps

DC Port

5.5mmx2.1mm center positive

DC Voltage


OLED Display


Power Consumption

5Watt (Typical)

Operating Environment Temperature



105mmx66mmx31mm (Antennas not included)


225g (Antennas included)

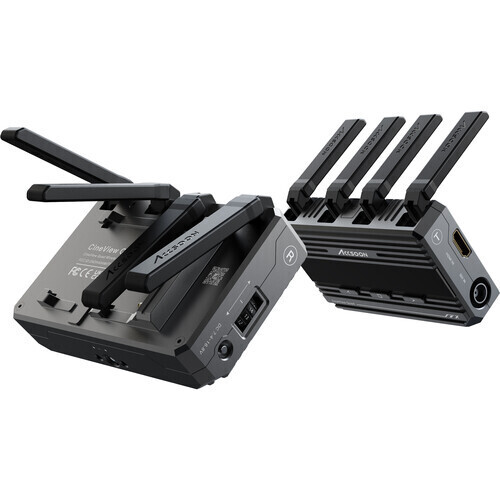

What's in the box:


1 x CineView Quad Transmitter

1 x CineView Quad Receiver

2 x Shoe Mount


Barcode # 664918771690
Brand Accsoon
Shipping Weight 1.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.200m
