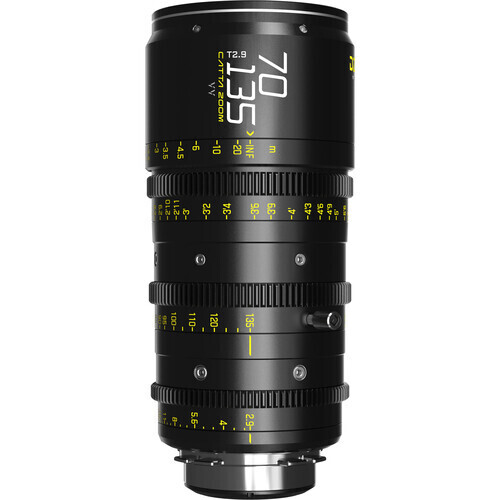

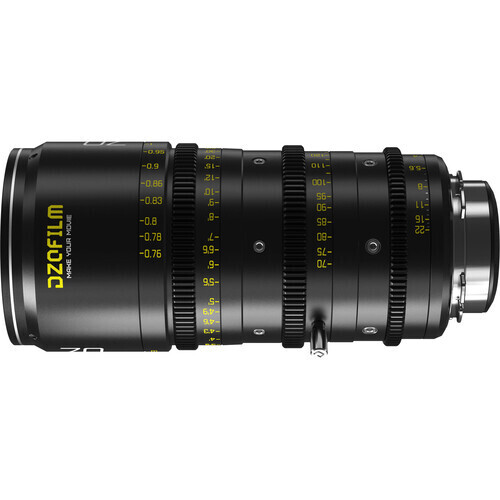

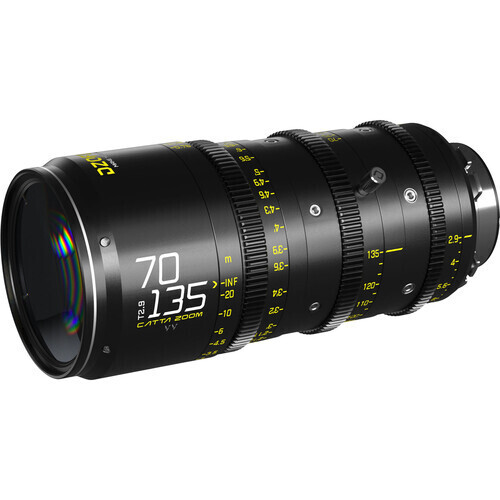

Add a cinema zoom lens to your documentary, broadcast, or online production kit with this black Catta Ace 70-135mm T2.9 PL-Mount Cine Zoom Lens from DZOFilm. The cine zoom lens is designed to maintain focus as you smoothly zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 29.9" close focus range.

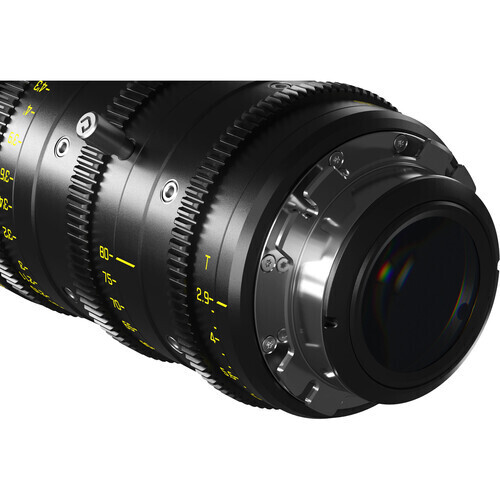

True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and an 80° iris rotation range. The lens features a PL mount, and an EF mount is included to change out using a screw and shim set. Multiple accessories are included with the lens, including front and rear lens caps, a support base, a support rod, and a filter bracket.

Key Features

Maintains focus throughout 70 to 135mm zoom range

Minimal breathing

16-blade iris with a soft bokeh

T2.9 to T22 aperture; 1.9x magnification ratio

240° focus rotation; 100° zoom rotation; 80° iris rotation

29.9" minimum focus distance

80mm front diameter

0.8 MOD gears


Focal Length 70 to 135mm
Lens Mount ARRI PL
Format Full Frame
Image Circle 46.5 mm
Maximum Aperture T2.9
Minimum Aperture T22
Minimum Focus Distance From Unspecified Point in Lens: 29.9" / 76 cm
Optical Design 17 Elements in 11 Groups
Diaphragm Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 240°
Iris Rotation 80°
Zoom Rotation 100°
Zoom Ratio 1.9x
Electronic Communication No
Image Stabilization No
Weight 1597g

Content List:

1 x DZOFilm Catta Zoom PL mount lens

1 x Front Lens Cap

1 x Rear Lens Cap

1 x EF bayonet

1 x EF Rear cap

1 x Shim Set

1 x Support Base

1 x Support Rod


SKU 432185
Barcode # 842463108226
Shipping Weight 2.0000kg
Shipping Width 0.500m
Shipping Height 0.200m
Shipping Length 0.200m
