Features

  • Portable Wireless Tally System
  • 8 Tally Lights Included
  • Connect Tally Lights up to 2600' Away
  • Up to 16 Channels Supported
  • Smart Sequence Learning
  • Adaptive Frequency Hopping
  • Detachable Battery with 8-Hour Runtime
  • DB25, RJ45 & USB-C Connectivity
  • Tally Light & Battery Weigh Only 3.5 oz
  • Hard Shell Case Included

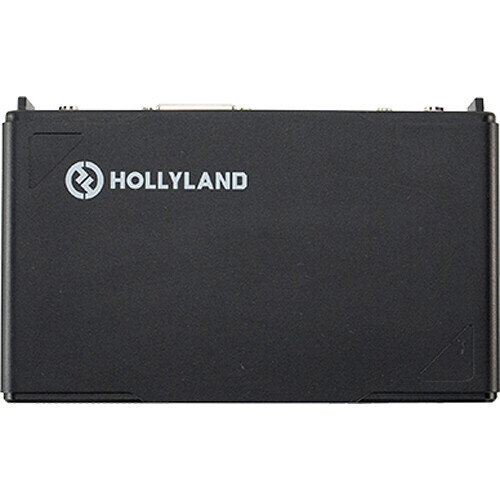

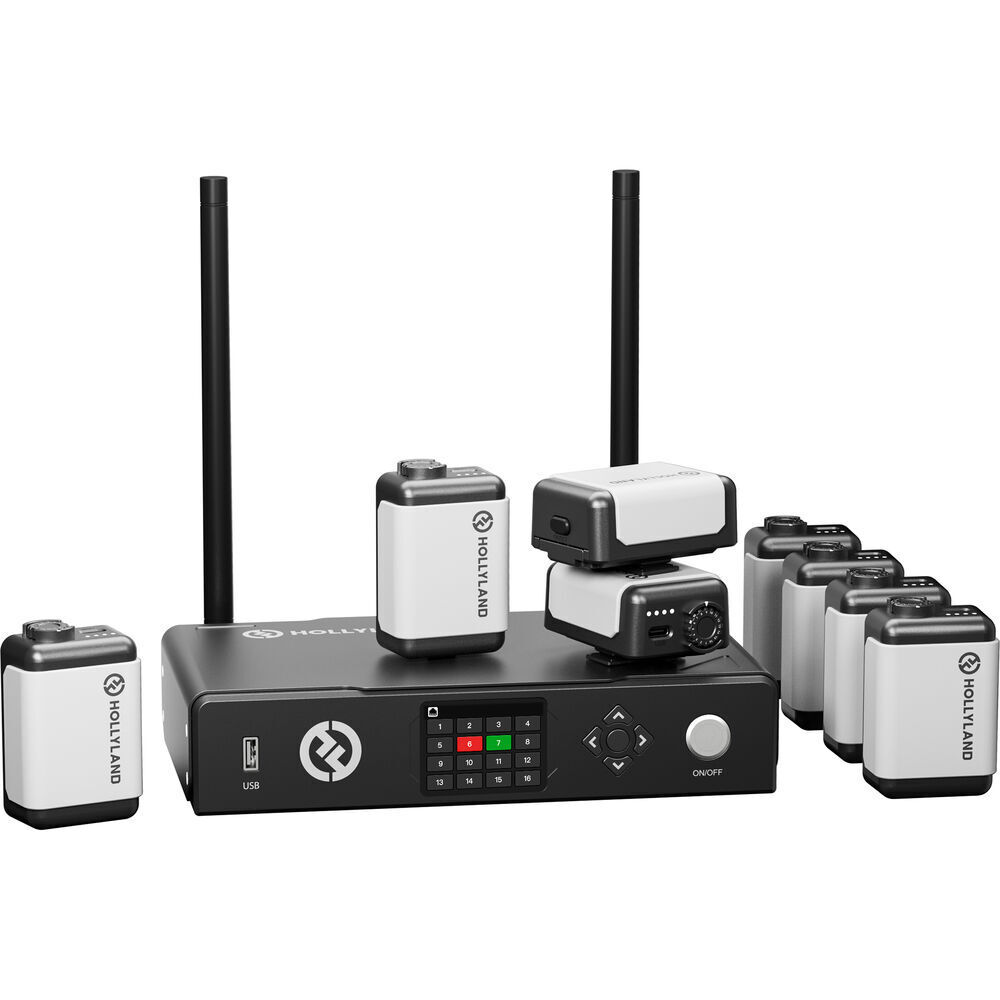

This Wireless Tally System from Hollyland is a portable, complete tally solution that includes eight tally lights that can be connected up to 2600' away from the wireless host unit. Equipped with multiple ports that provide DB25, RJ45, and USB-C connectivity for compatibility with a wide range of switchers, the system boasts a powerful smart sequence learning function, adaptive frequency hopping, and support for up to 16 channels for future expansion of the system.



The sequence learning function of the system enables users to easily connect any switcher operating with high or low voltage levels to the system, employing  a standard tally cable for wide switcher compatibility. Frequency hopping facilitates the detection of interference, enabling the system to automatically hop to a channel with less interference for a more stable and reliable transmission. A detachable lithium-ion battery pack included with each tally light provides up to eight hours of uninterrupted operation, and a hard-shell case is included for easy transport and storage.



Specifications:

General

Compatibility

Hollyland Wireless Tally System

Max Transmission Distance

2600' / 800 m

Sensitivity

<-115 dBm

Delay

<150 ms

Display

Panel Type

Not Specified by Manufacturer

Display Size

Not Specified by Manufacturer

Touchscreen

No

Inputs / Outputs

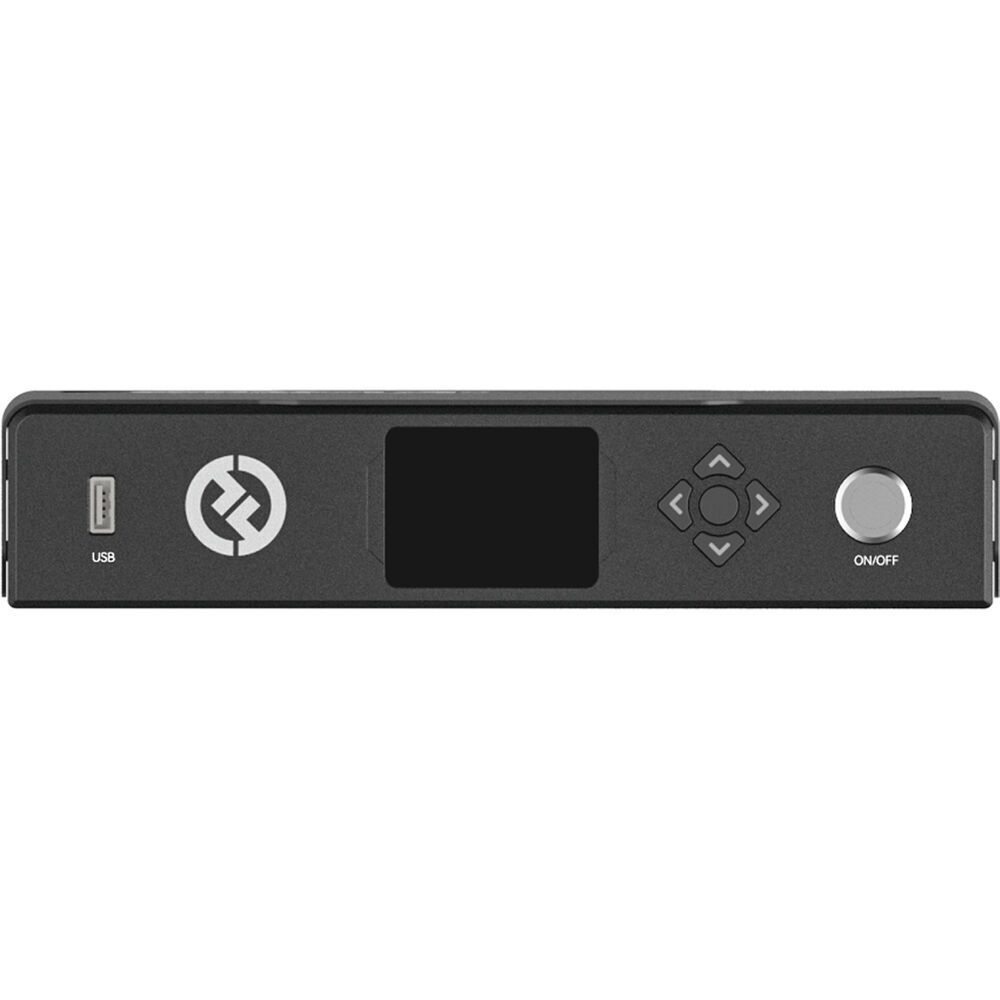

USB I/O

1 x USB-A Female Input/Output
1 x USB-C Female Input/Output

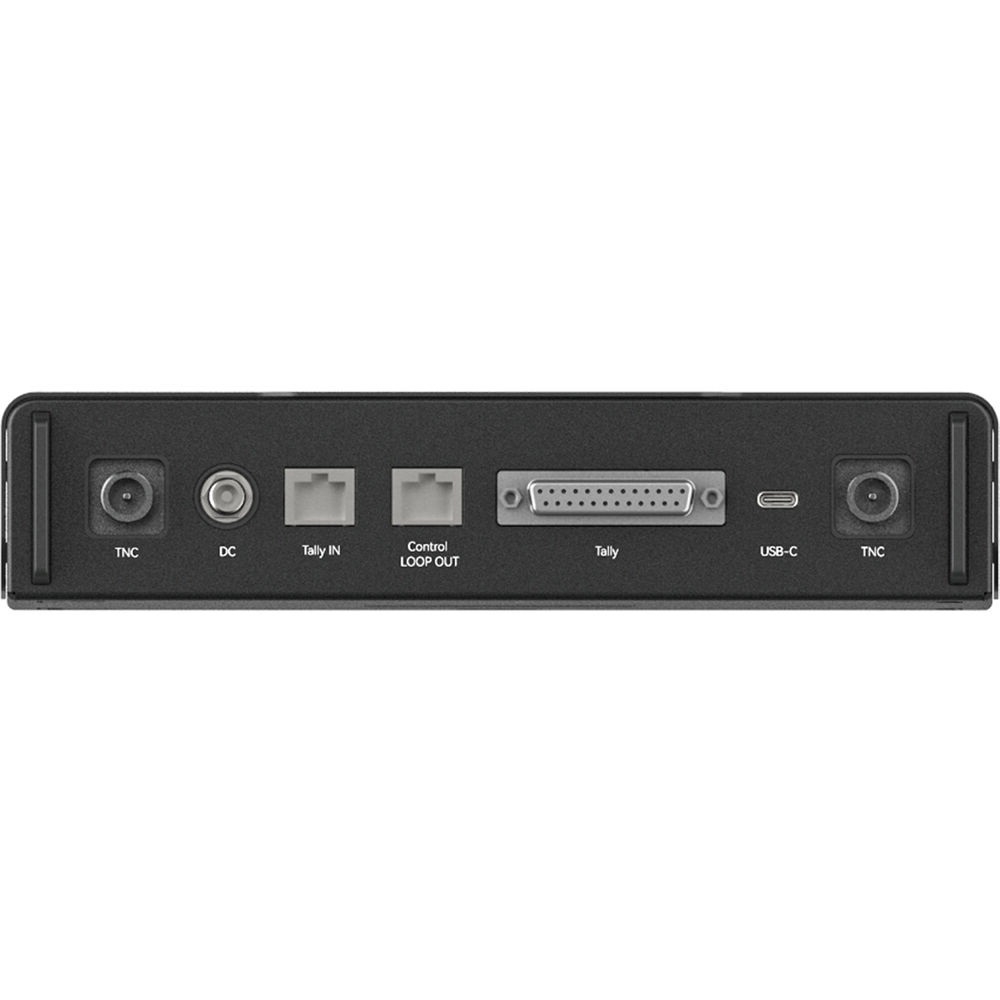

Other I/O

1 x RJ45 Port for Tally Input
1 x RJ45 Port for Switcher Loop Out
1 x DB25 Port for Tally Input
2 x Antenna Connector

Wireless

Wireless

2.4 GHz Radio/RF
*Built-In

Power

Power Source

AC Adapter with Power Brick (Included)

Environmental

Operating Temperature

32 to 113°F / 0 to 45°C

Storage Temperature

14 to 140°F / -10 to 60°C

Physical

Color

Black

Dimensions

9.2 x 5.6 x 2" / 232.8 x 142.5 x 50.1 mm

Weight

2.6 lb / 1.2 kg

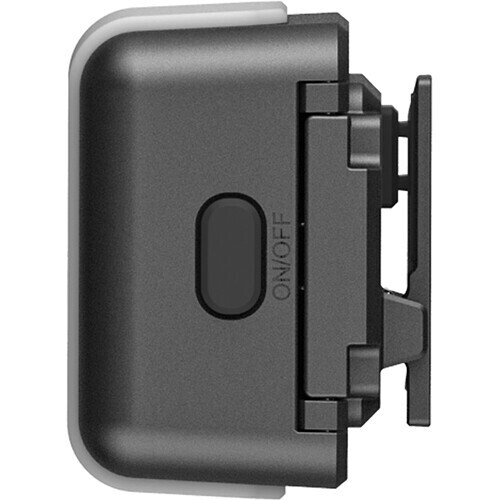

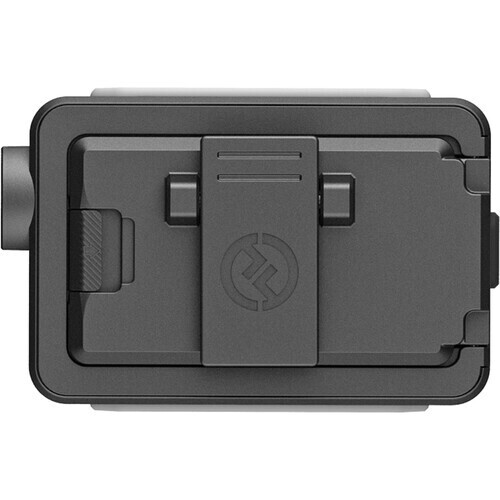

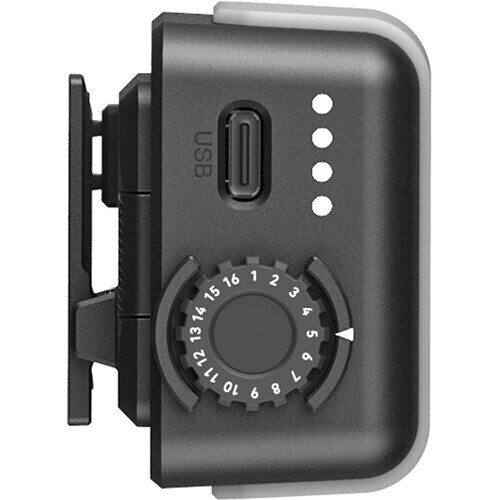

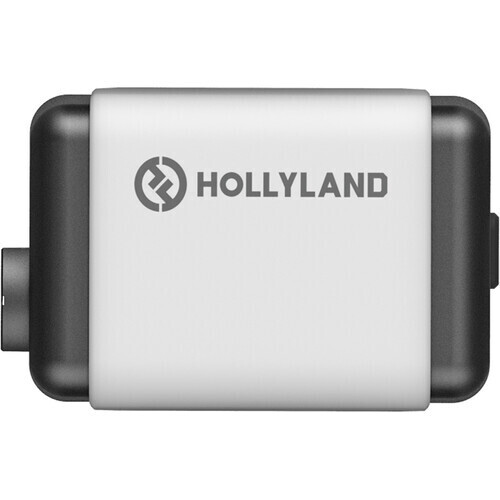

Hollyland Tally Light Specs

General

Compatibility

Hollyland Wireless Tally System

Max Transmission Distance

2,600' / 800 m

Sensitivity

<-115 dBm

Delay

<150 ms

Modulation

LORA

Wireless

Wireless

2.4 GHz Radio/RF
*Built-In

Battery

Battery Chemistry

Lithium-Ion

Maximum Battery Life

8 Hours

Environmental

Operating Temperature

32 to 113°F / 0 to 45°C

Storage Temperature

14 to 140°F / -10 to 60°C

Physical

Dimensions

3.1 x 2 x 1.5" / 77.8 x 50.5 x 37.4 mm

Weight

3.5 oz / 98.5 g (with Battery)

Hollyland Hard-Shell Case For Wireless Tally System Specs

General

Compatibility

Hollyland Wireless Tally System

Physical

Color

Black

Dimensions

20.3 x 13.8 x 8.5" / 515 x 350 x 215 mm

Weight

Not Specified by Manufacturer

Hollyland Antenna For Wireless Tally System (Pair) Specs

General

Compatibility

Hollyland Wireless Tally System

Gain

4 dBi

Physical

Color

Black

Dimensions

10.4 x 3.9 x 1" / 265 x 100 x 25 mm

Weight

4.1 oz / 115 g

Hollyland 12V 2A DC 2.1mm Power Adapter Specs

General

Compatibility

Hollyland Wireless Tally System

Power

Power Source

AC Adapter with Power Brick

Power I/O

1x Barrel Output

Center Tip Polarity

Not Specified by Manufacturer

AC Input Power

Not Specified by Manufacturer

DC Input Power

12 VDC at 2 A

Maximum Power Output

Not Specified by Manufacturer

Physical

Quantity

1

Color

Black

Dimensions

8.5 x 5.2 x 0" / 215 x 132 x 0.1 mm

Weight

5.29 oz / 150 g

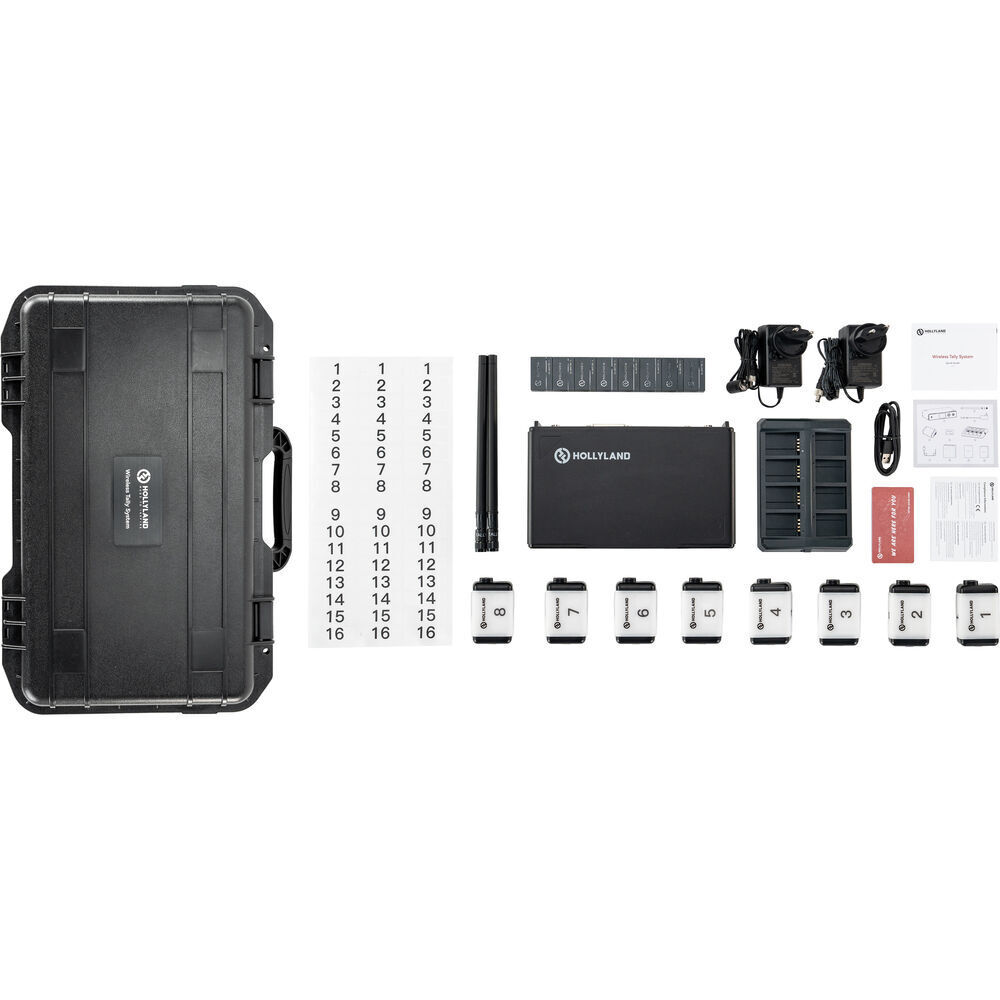

What's in the box:

1 x Hollyland Tally Station

8 x Hollyland Tally Light

8 x Battery

1 x Battery Charger

1 x Carry Case



SKU WirelessTallySystem8
Barcode # 6976068114864
Brand Hollyland
Shipping Weight 2.0000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.400m
