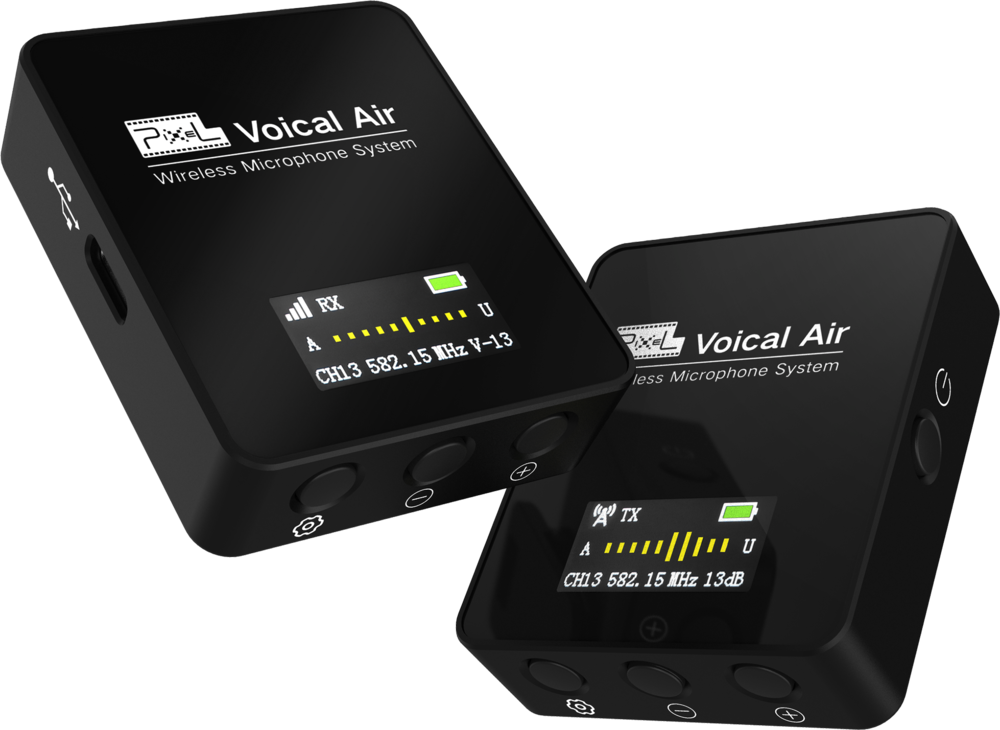

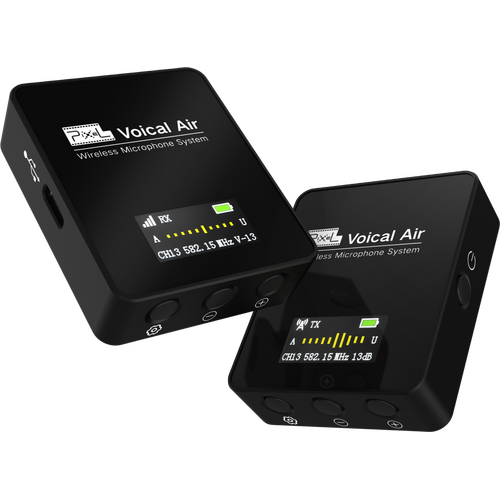

The new Pixel Voical - Air is compact UHF wireless microphone system which is compact form-factor. It’s the perfect wireless mic solution for content creators in all disciplines: filmmakers, on-camera presenters, newsgatherers, vloggers and more.



Measuring in at an ultra-compact 55mm x 46mm x 15mm and weighing just 35g, the transmitter (TX) unit acts as either a quick and easy clip-on wireless microphone or a compact beltpack transmitter for a lavalier microphone via the 3.5mm TRS input.



The RX is just as compact, measuring only 55mm x 46mm x 15mm and weighing only 35g, it can be snug in your camera’s shoe mount, or clips easily onto your camera strap or an item of clothing. The supplied 3.5mm TRS output cable plugs into your camera’s audio input.



  • UHF Transmission microphone
  • Operates as a clip-on microphone or beltpack transmitter for a lavalier/headset microphone
  • Built-in omnidirectional condenser microphone delivers broadcast-quality sound
  • Up to 70m range (line-of-sight), but optimised for shorter-range operation in congested radio-frequency environments
  • TX and RX have built-in rechargeable batteries, charged via USB-C
  • Up to 6 hours on a full charge, including a battery-saver mode
  • The transmitter and receiver pair in just 3 seconds
  • LCD screen on both TX and RX unit
  • 36 channels
  • Use up to 8 systems in one location.




Brand Pixel
Model Voical Air
Transmission type UHF
Acoustic Principle Pre-polarised pressure transducer
Polar Pattern Omnidirectional
Equivalent Input Noise @ Maximum Gain 21.8dB (A-Weighted)
Frequency Range 50Hz - 20kHz
External Mic Input 20Hz - 20kHz
Maximum Output Level +3dBu
Maximum SPL 100dB SPL (1kHz @ 1m)
Dynamic Range 100dBA (Mic Preamplifiers)
Power Requirements Inbuilt Li-po battery rechargeable via USB
Battery Life Up to 6 hours
Analog Inputs 3.5mm TRS lavalier microphone input (transmitter)
Analog Outputs 3.5mm TRS (receiver)
Computer Connectivity USB (firmware update)
OS Requirements (For firmware update only) macOS 10.11 above Windows 10 and above
Form Factor Clip-on pack
Weight (g) TX: 35 , RX: 35
Dimensions (L x W x H, mm) TX: 55 × 46 × 15mm , RX: 55 x 46 x 15mm
SKU 6792
Shipping Weight 1.0000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.100m
