The YoloBox Mini is ideal for streaming from a single camera or when connected to a switcher's output, as it will not only encode and stream, but also add graphic overlays freeing you from needing a computer. Simply connect your video input to either HDMI or USB 2.0, then connect to a local area network via Wi-Fi, Ethernet, or LTE (LTE connection requires SIM card and data plan not included). It also features an HDMI output to display your stream locally on an optional HDMI display. The YoloBox Mini supports input resolutions ranging up to 1080p60 and can stream to YouTube, Twitch, and other streaming services via custom RTMP presets. You can record your stream directly in MP4 format to an optional SD card with up to 1TB capacity using the built-in SD card slot.

Key Features

  • Touch control without a computer
  • 5.5" LCD with 500 cd/m² brightness
  • Built-in simultaneous streaming to up to 3 destinations
  • HDCP compliant
  • Stream via Ethernet, Wi-Fi, LTE 4G

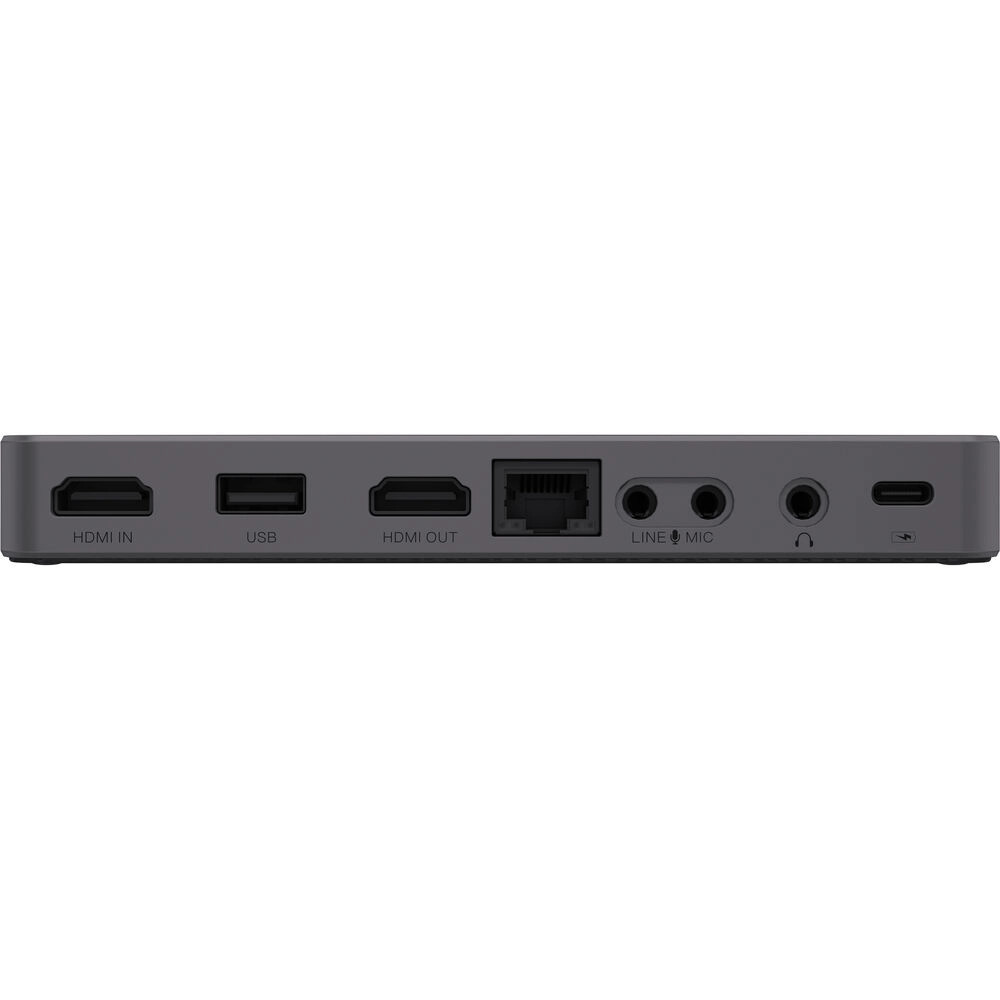

  • 1 x HDMI inputs, 1 x USB video input, 1 x SD card slot, 1 x HDMI output
  • One USB Type-C charging input
  • Mic and line audio input
  • Ability to input PDF
  • Add logos/comments to the stream
  • Import pictures/videos from SD card
  • Records internally to an SD card up to 128GB
  • Direct integration with YouTube/Facebook/RTMP(s)
  • Supports up to 1080p60 video

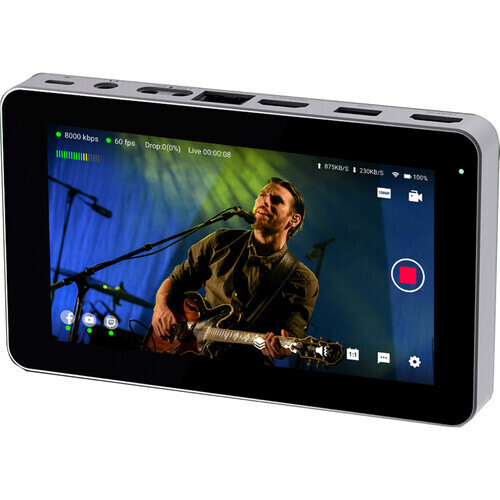

Touchscreen Control

The YoloBox Mini provides you with a touchscreen interface for easy streaming and control.

Functions

The device works as an encoder that allows for live streaming, and it can record to optional SD cards up to 1TB.

Overlays

  • You can brand your live stream by adding logos/watermarks/rolling captions
  • Customized options, including Interview mode, allow you to bring a unique look and feel to your stream
  • Engage with your audience in real time via feature comment overlays
  • The customizable scoreboard feature displays a real-time-controlled scoreboard for professional looking results
  • Built-in lower-thirds templates can be edited or you can add your own

Internet

You can connect to the internet using the integrated RJ45 (Ethernet) port, Wi-Fi, and via cell service using an optional SIM card and data plan.

Streaming Platforms

Major steaming platforms such as Facebook live, YouTube, and twitch as well as YoloLIV are supported.

RTMP protocols allow you to stream to custom RTMP destinations including YouTube.

Specs

IP Encoding/Decoding

IP Video H.264:
960 x 540 to 1920 x 1080 Encoding
IP Audio AAC-LC: Encoding
Transport Protocols RTMP
Simultaneous Streams 3 Streams
Compatible Services Facebook Live, Twitch, YouTube Live

Wireless

Wi-Fi 2.4/5 GHz

Cellular

SIM Card Slots 1 x Nano SIM
4G LTE LTE

Interfaces

Video Connectors 1 x HDMI Input
1 x HDMI Output
Audio Connectors 1 x 1/8" / 3.5 mm TRS Stereo Analog Input
1 x 1/8" / 3.5 mm TRS Mono Analog Input
1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Output
Other I/O 1 x RJ45 10/100 Ethernet Input/Output
1 x USB Type-A USB 3.1 Gen 1 Input
1 x USB Type-C USB 3.1 Gen 1 Input/Output
Embedded Audio HDMI/USB Type-C/Wireless: 2-Channel

Internal Recording

Recording Media 1 x SD (Unspecified Type)
Recording Modes 1920 x 1080p up to 60 fps
Built-In Battery 4700 mAh
Power Connector 1 x USB Type-C (5 to 12 VDC at 1.5 A) Input
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 15 to 85%
Storage Temperature 41 to 104°F / 5 to 40°C
Display LCD
Dimensions 155 x 92.6 x 20 mm
Weight 320 g
SKU YoloBoxMini
Barcode # 664918139087
Brand YoloLiv
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.080m
Shipping Length 0.250m
